Ashmoors RF30 Diesel Forklift
Ashmoors UK specification, preparation and support · Manufactured by RIPPA
3,000 kg diesel counterbalance forklift.
3,000 kg diesel forklift for yards, warehouses and site logistics.
- Rated capacity
- 3,000 kg
- Load centre
- 500 mm

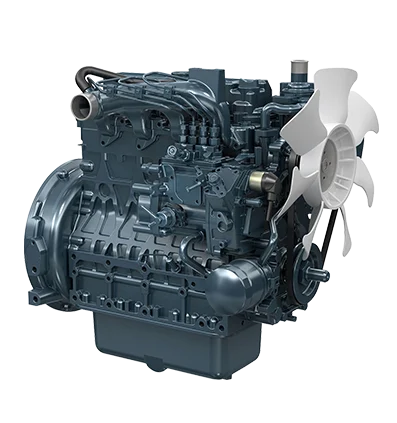

- Engine
- Xinchai diesel, 37 kW (50 hp)
- Standard lift height
- 3,000 mm
Ashmoors price
Request a quote
Specification, attachments and delivery vary on this machine, so we quote each order individually. Tell us the machine, your site and delivery postcode, and we will come back with a firm, all-in price.
Request price & spec sheetOne click — the model is already filled in for you.
Supplied fully assembled & UK workshop tested
No import logistics, port fees or assembly required. Backed by a 12-month UK parts warranty.
Overview
Made for the way British contractors actually work.

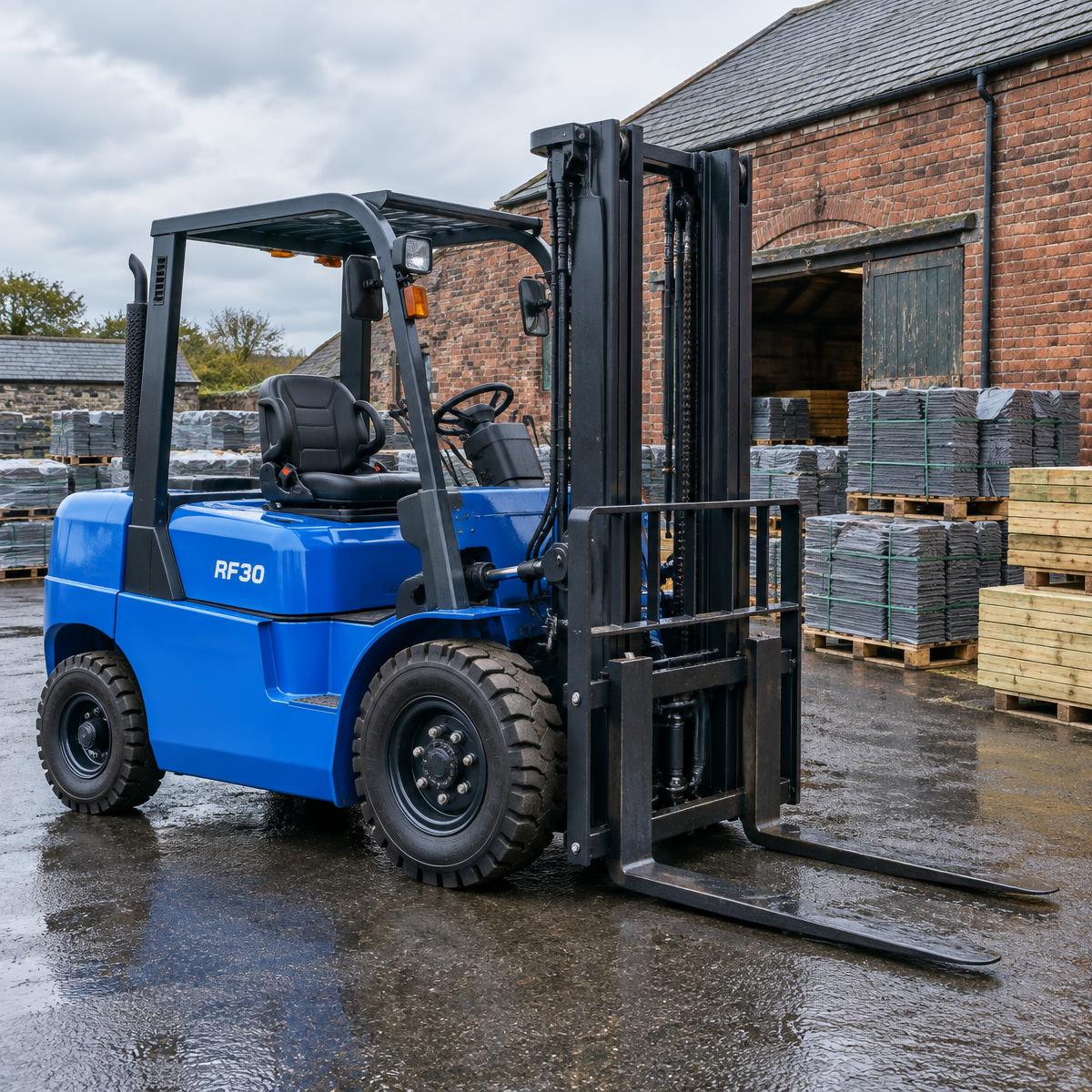

The RF30 is a 3,000 kg rated diesel counterbalance forklift for outdoor yards, timber merchants, agricultural stores, warehouses and general materials handling. Solid-tyre chassis, two- or three-stage mast options and hydraulic side-shift available.
Diesel power for full-day duty, a straightforward mechanical drivetrain for easy service and long life, and UK-stocked wear parts. Finance available across the range.
Ashmoors specifies, inspects and prepares this machine for the UK market, supplies it and remains responsible for its UK warranty, parts, servicing and technical support. It is manufactured by RIPPA under its original model code.
Best for
- Timber & builders' merchants
- Agricultural stores
- General yard logistics
- Outdoor warehousing
Specifications
The numbers, plainly.
Request the technical datasheet, weights and dimensioned drawings with your quote.
Request full spec sheetEngineered detail
Where the RF30 earns its keep.
01
Full-shift diesel duty
Diesel powertrain sized for continuous outdoor and yard use — no charge cycles, no downtime waiting for battery.
02
Simple to service
Mechanical drivetrain and standard-pattern parts kept in UK stock. Long-life ownership, not disposable machinery.
03
Built for British sites
Hoses, seals and electrics specified for wet winters and long days. Proven Kubota, Yanmar or Cummins power on many models, with sensible service intervals.
04
Ashmoors UK support
Ashmoors remains your UK point of contact for warranty, servicing, parts and technical support throughout ownership.
Compatible attachments
One machine, endless jobs.
Compare in class
The RF30, next to its siblings.
Side-by-side headline specifications for the nearest machines in the forklifts range. Full comparison sheets and dimensioned drawings sent with any quote.
| Specification | 3,000 kg RF30 | 2,000 kg RF20 | 2,500 kg RF25 | 3,500 kg RF35 |
|---|---|---|---|---|
| Operating weight | — | 3,400 kg | 3,650 kg | — |
| Engine | Xinchai diesel, 37 kW (50 hp) | Kubota V2403 diesel (Changchai 390 option) | Changchai 390 diesel | Kubota V2403 diesel, 39.6 kW (53.1 hp) |
| Rated capacity | 3,000 kg | 2,000 kg | 2,500 kg | 3,500 kg |
| Standard lift height | 3,000 mm | 3,000 mm | 3,000 mm | — |
| Max lift height (3-stage) | — | 4,060 mm | — | — |
| Free lift height | — | 100 mm | — | 100 mm |
Also in
Curated collections featuring the RF30
FAQs
Questions we hear a lot.
Not seeing yours? Request a callback — discuss the job directly with our UK team.
What engine is fitted to the RF30?+
The Ashmoors RF30 Diesel Forklift is fitted with a Xinchai diesel, 37 kW (50 hp), as published in the manufacturer's specification. The full specification table on this page lists every confirmed figure for the machine.
What does the RF30 weigh, and can it be towed in the UK?+
The RF30 is quoted at 3,000 kg. Add the tare weight of your plant trailer, typically 700-800 kg for a braked 3.5-tonne trailer, to get the towed weight, then check that total against your trailer plate, your towing vehicle's limits and your licence entitlement before travelling. Machines above roughly 8 tonnes are delivered by low-loader instead.
What warranty does the RF30 come with?+
Every RF30 comes with a 12-month parts warranty, with warranty claims handled for you in the UK by Ashmoors. The engine also carries the engine manufacturer's own warranty, and extended cover can be quoted on request. Full terms are confirmed in writing with your order.
How quickly can the RF30 be delivered?+
Machines are held in stock in the UK. Mainland UK delivery is typically 3–5 working days from cleared payment, fully insured, and we confirm a delivery day with you in advance. Highlands, islands and Northern Ireland are arranged on request.
Are spare parts held in the UK?+
Contact Ashmoors with the RF30 serial number and required part. We will confirm compatibility, availability and delivery before you order.
Can I finance the RF30?+
Finance options may include hire purchase and finance lease through UK-regulated funders. Terms and monthly figures depend on the machine, deposit, term and applicant status.
Do I need a CPCS ticket to operate this machine?+
Operator ticketing requirements depend on the site, insurance and duty. For most domestic and light-commercial work the RF30 does not legally require CPCS, but many hire firms and main contractors will still require an appropriate ticket. Speak to your site's health & safety lead.
What attachments fit the RF30?+
Side-shift, Fork positioner, Extended forks, Bale clamp — plus most common auxiliary-hydraulic attachments sized for the class.
Where can I compare the RF30 against other forklifts?+
Every machine in the Forklifts range is listed at /machinery/forklifts. Call us and we'll walk you through the spec differences against the closest alternatives — we'd rather sell you the right machine than the biggest one.
Do you sell used forklifts?+
Our listed range is new machinery. Contact the Ashmoors team to ask about current availability.
Also in the range
Other forklifts
2,000 kg
RF20
2,000 kg diesel counterbalance forklift.
Request a quote →
Built to order · UK delivery
- Rated capacity
- 2,000 kg
- Load centre
- 500 mm
- Engine
- Kubota V2403 diesel (Changchai 390 option)
2,500 kg
RF25
2,500 kg diesel counterbalance forklift.
Request a quote →
Built to order · UK delivery
- Rated capacity
- 2,500 kg
- Load centre
- 500 mm
- Engine
- Changchai 390 diesel
3,500 kg
RF35
3,500 kg diesel counterbalance forklift.
Request a quote →
Built to order · UK delivery
- Rated capacity
- 3,500 kg
- Load centre
- 500 mm
- Engine
- Kubota V2403 diesel, 39.6 kW (53.1 hp)
Pre-delivery inspection
Every RF30 is PDI checked in Britain.
Your RF30 is not passed straight from the container to your yard. It goes through our 20-point pre-delivery inspection at our UK workshop, and the signed checklist, operator's manual and conformity documents are supplied with the machine. Service kits and filters are held in the UK, so routine servicing never leaves you waiting on a container.
- Hydraulic pressures checked against the manufacturer's figures
- All hydraulic hoses, rams and fittings checked for weeps and chafing
- Engine oil level and condition checked
- Hydraulic oil level and cleanliness checked
- Coolant level and antifreeze strength checked
- Fuel system bled and filters checked
- Air filter and pre-cleaner inspected
- Battery charged, terminals cleaned and protected
- Track tension set and running gear bolts torqued
- Slew ring and pivot bolts torqued to specification
- Every grease point charged
- Boom, dipper and bucket pins checked for play
- Quick hitch function and safety locking tested
- Auxiliary hydraulic circuit flow tested
- Bucket and attachment fit confirmed on the machine
- All lights, horn, alarms and switches tested
- Seat, belt, controls and safety guards checked
- Cab or canopy glazing, wipers and heater checked (where fitted)
- Test run through every function, plus a short working test
- Machine washed, touched in where needed, manual and documents packed
Enquire
Want the RF30 on your yard?
Request a quote. Get a confirmed price, delivery ETA and finance quote from a British specialist. Tell us the machine, attachments and delivery postcode so we can prepare the right quotation.
