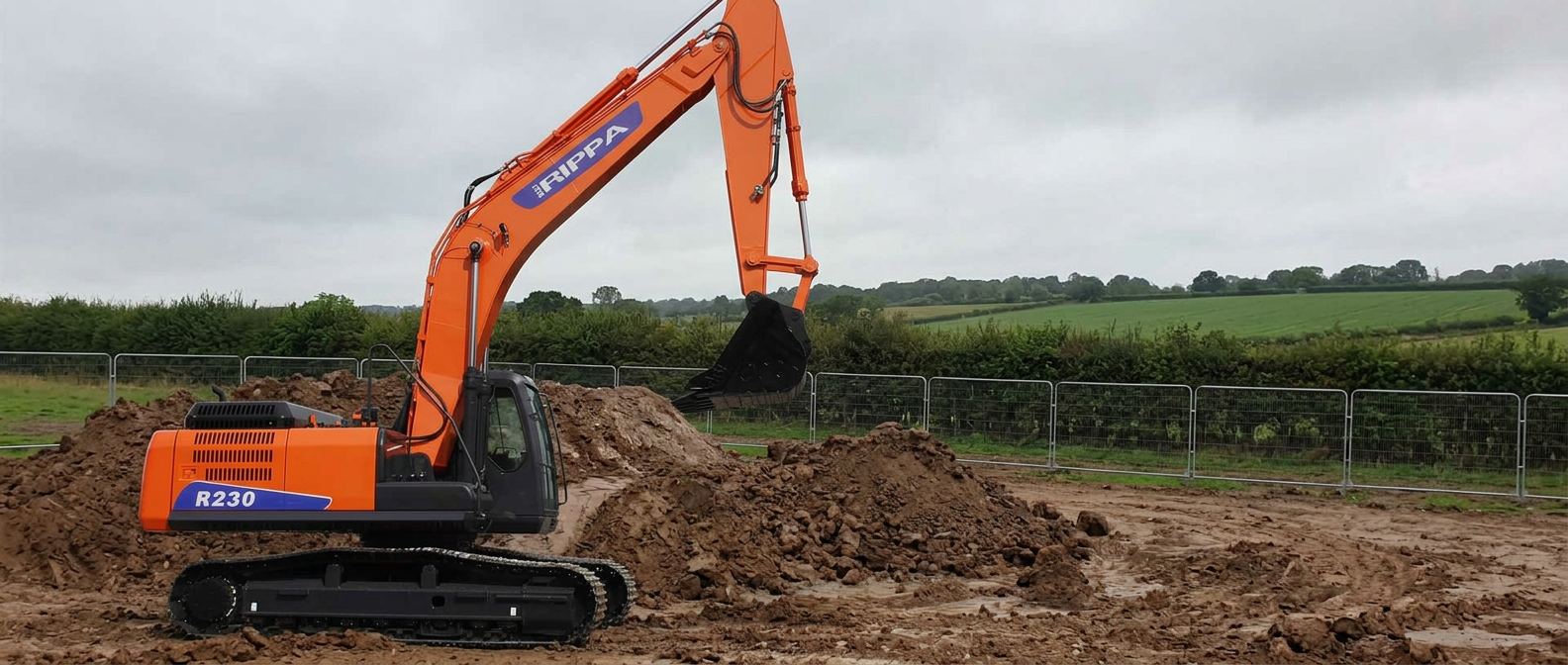

Ashmoors R230 Excavator
Ashmoors UK specification, preparation and support · Manufactured by RIPPA
21.5-tonne production excavator.
The 20-tonne-class workhorse for earthmoving contractors.
- Operating weight
- 21,500 kg
- Engine
- Isuzu or Cummins diesel (Euro V), 135 kW
- Max digging depth
- 6,630 mm
- Bucket capacity
- 0.5–1.28 m³
Ashmoors price
Request a quote
Specification, attachments and delivery vary on this machine, so we quote each order individually. Tell us the machine, your site and delivery postcode, and we will come back with a firm, all-in price.
Request price & spec sheetOne click — the model is already filled in for you.
Supplied fully assembled & UK workshop tested
No import logistics, port fees or assembly required. Backed by a 12-month UK parts warranty.
Overview
Made for the way British contractors actually work.
The R230 is a 21,500 kg crawler excavator with a 0.5–1.28 m³ bucket range, specified by Ashmoors for UK contractors, plant hire fleets and quarry operators. Isuzu or Cummins diesel (Euro V) power is paired with an electronically controlled hydraulic system that manufacturer testing shows reduces fuel use by up to 7% against the previous generation.
Full operator cab with climate control, pilot-lever controls and ground-level service access. Supplied, prepared, warrantied and supported in the UK by Ashmoors, with genuine parts and aftercare from our own team.
Ashmoors specifies, inspects and prepares this machine for the UK market, supplies it and remains responsible for its UK warranty, parts, servicing and technical support. It is manufactured by RIPPA under its original model code.
Best for
- Earthmoving contractors
- Quarry & aggregate
- Major groundworks
- Road & rail civils
Specifications
The numbers, plainly.
Request the technical datasheet, weights and dimensioned drawings with your quote.
Request full spec sheetEngineered detail
Where the R230 earns its keep.
01
Fuel-efficient hydraulics
Electronically controlled main pump and valve match hydraulic output to the job, cutting wasted energy and fuel on long production shifts.
02
Built for production duty
Heavy-duty undercarriage, reinforced boom and arm and a cab designed for full days in British weather.
03
Built for British sites
Hoses, seals and electrics specified for wet winters and long days. Proven Kubota, Yanmar or Cummins power on many models, with sensible service intervals.
04
Ashmoors UK support
Ashmoors remains your UK point of contact for warranty, servicing, parts and technical support throughout ownership.
Compatible attachments
One machine, endless jobs.
Compare in class
The R230, next to its siblings.
Side-by-side headline specifications for the nearest machines in the large excavators range. Full comparison sheets and dimensioned drawings sent with any quote.
| Specification | 21.5T R230 | 5.5T R57 | 8.0T R82 | 6.0T R60 |
|---|---|---|---|---|
| Operating weight | 21,500 kg | 5,792 kg | 8,200 kg | 6,000 kg |
| Engine | Isuzu or Cummins diesel (Euro V), 135 kW | Kubota V2607 diesel | Yanmar 4TNV98 or Changchai diesel, 45 kW | Yanmar 4TNV94L diesel |
| Max digging depth | 6,630 mm | 3,890 mm | 4,172 mm | 3,890 mm |
| Bucket capacity | 0.5–1.28 m³ | — | — | 0.09–0.175 m³ |
| Bucket digging force | 136.2 kN | — | — | 44 kN |
| Aux hydraulics | — | Sized for breakers, tilt-rotators & flails | High-flow available | — |
Also in
Curated collections featuring the R230
FAQs
Questions we hear a lot.
Not seeing yours? Request a callback — discuss the job directly with our UK team.
What engine is fitted to the R230?+
The Ashmoors R230 Excavator is fitted with a Isuzu or Cummins diesel (Euro V), 135 kW, as published in the manufacturer's specification. The full specification table on this page lists every confirmed figure for the machine.
What does the R230 weigh, and can it be towed in the UK?+
The R230 is quoted at 21,500 kg. Add the tare weight of your plant trailer, typically 700-800 kg for a braked 3.5-tonne trailer, to get the towed weight, then check that total against your trailer plate, your towing vehicle's limits and your licence entitlement before travelling. Machines above roughly 8 tonnes are delivered by low-loader instead.
How deep does the R230 dig?+
Maximum digging depth for the R230 is 6,630 mm. If your job has a fixed depth requirement — drainage runs, foundations or service trenches — tell us the depth and we will confirm whether this machine reaches it or point you to the next class up.
What warranty does the R230 come with?+
Every R230 comes with a 12-month parts warranty, with warranty claims handled for you in the UK by Ashmoors. The engine also carries the engine manufacturer's own warranty, and extended cover can be quoted on request. Full terms are confirmed in writing with your order.
How quickly can the R230 be delivered?+
Delivery of the R230 is arranged individually by low-loader to your site. Contact Ashmoors with your site location and access details and we will confirm a delivery date and quote before you order.
Are spare parts held in the UK?+
Contact Ashmoors with the R230 serial number and required part. We will confirm compatibility, availability and delivery before you order.
Can I finance the R230?+
Finance options may include hire purchase and finance lease through UK-regulated funders. Terms and monthly figures depend on the machine, deposit, term and applicant status.
Do I need a CPCS ticket to operate this machine?+
Operator ticketing requirements depend on the site, insurance and duty. For most domestic and light-commercial work the R230 does not legally require CPCS, but many hire firms and main contractors will still require an appropriate ticket. Speak to your site's health & safety lead.
What attachments fit the R230?+
Digging bucket, Rock bucket, Grading bucket, Hydraulic breaker, Quick hitch — plus most common auxiliary-hydraulic attachments sized for the class.
Where can I compare the R230 against other large excavators?+
Every machine in the Large Excavators range is listed at /machinery/large-excavators. Call us and we'll walk you through the spec differences against the closest alternatives — we'd rather sell you the right machine than the biggest one.
Do you sell used large excavators?+
Our listed range is new machinery. Contact the Ashmoors team to ask about current availability.
Also in the range
Other large excavators
5.5T
R57
Cab-class 5.5T excavator for serious groundworks.
Request a quote →
Built to order · UK delivery
- Operating weight
- 5,792 kg
- Engine
- Kubota V2607 diesel
- Max digging depth
- 3,890 mm
8.0T
R82
8-tonne class production machine.
Request a quote →
Built to order · UK delivery
- Operating weight
- 8,200 kg
- Engine
- Yanmar 4TNV98 or Changchai diesel, 45 kW
- Max digging depth
- 4,172 mm
6.0T
R60
6-tonne cab excavator.
Request a quote →
Built to order · UK delivery
- Operating weight
- 6,000 kg
- Engine
- Yanmar 4TNV94L diesel
- Max digging depth
- 3,890 mm
Pre-delivery inspection
Every R230 is PDI checked in Britain.
Your R230 is not passed straight from the container to your yard. It goes through our 20-point pre-delivery inspection at our UK workshop, and the signed checklist, operator's manual and conformity documents are supplied with the machine. Service kits and filters are held in the UK, so routine servicing never leaves you waiting on a container.
- Hydraulic pressures checked against the manufacturer's figures
- All hydraulic hoses, rams and fittings checked for weeps and chafing
- Engine oil level and condition checked
- Hydraulic oil level and cleanliness checked
- Coolant level and antifreeze strength checked
- Fuel system bled and filters checked
- Air filter and pre-cleaner inspected
- Battery charged, terminals cleaned and protected
- Track tension set and running gear bolts torqued
- Slew ring and pivot bolts torqued to specification
- Every grease point charged
- Boom, dipper and bucket pins checked for play
- Quick hitch function and safety locking tested
- Auxiliary hydraulic circuit flow tested
- Bucket and attachment fit confirmed on the machine
- All lights, horn, alarms and switches tested
- Seat, belt, controls and safety guards checked
- Cab or canopy glazing, wipers and heater checked (where fitted)
- Test run through every function, plus a short working test
- Machine washed, touched in where needed, manual and documents packed
Enquire
Want the R230 on your yard?
Request a quote. Get a confirmed price, delivery ETA and finance quote from a British specialist. Tell us the machine, attachments and delivery postcode so we can prepare the right quotation.
