Ashmoors RL06 Wheel Loader
Ashmoors UK specification, preparation and support · Manufactured by RIPPA
Compact telescopic-boom yard loader.
The tightest-access wheel loader in the range, for stables, gardens and smallholdings.
- Rated load capacity
- 600 kg
- Rated bucket capacity
- 0.23 m³
- Engine
- Kubota D1105 (Euro V / EPA4)
- Dumping height
- 2,060 mm
Ashmoors price
Request a quote
Specification, attachments and delivery vary on this machine, so we quote each order individually. Tell us the machine, your site and delivery postcode, and we will come back with a firm, all-in price.
Request price & spec sheetOne click — the model is already filled in for you.
Supplied fully assembled & UK workshop tested
No import logistics, port fees or assembly required. Backed by a 12-month UK parts warranty.
Overview
Made for the way British contractors actually work.
The RL06 is a compact articulated wheel loader sized for UK yards, farms and small-to-mid site contractors. The articulated frame turns tighter than a rigid machine of the same capacity, reduces tyre scrub on hard standing, and keeps the loader stable under full load on uneven ground.

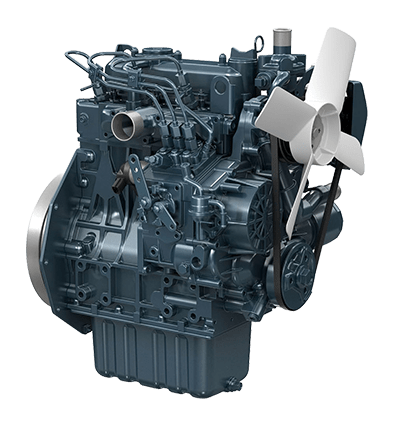

Rated at 600 kg with a 0.23 m³ bucket and Kubota D1105 (Euro V / EPA4) power. Quick-attach hitch takes buckets, forks and grapples from the Ashmoors attachment range. UK-stocked wear parts and finance available on the full price.
Ashmoors specifies, inspects and prepares this machine for the UK market, supplies it and remains responsible for its UK warranty, parts, servicing and technical support. It is manufactured by RIPPA under its original model code.
Best for
- Farm & agricultural yards
- Stables & smallholdings
- Timber yards
- Aggregate & materials handling
- Hire fleets
Specifications
The numbers, plainly.
Request the technical datasheet, weights and dimensioned drawings with your quote.
Request full spec sheetEngineered detail
Where the RL06 earns its keep.
01

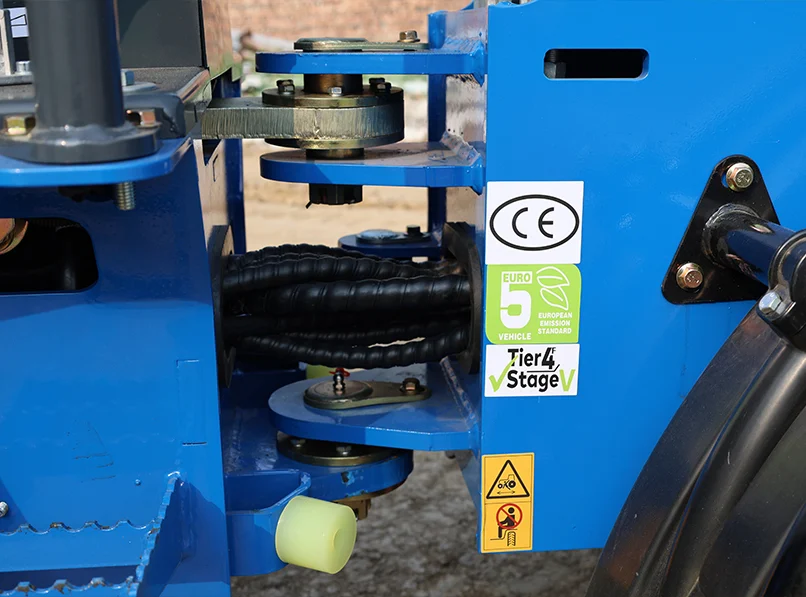

Articulated chassis
Full articulation gives the tight turning circle of a skid steer with the road speed and comfort of a wheeled machine — right for yards where kerb-hopping matters.
02
Attachment ecosystem
Universal quick-attach hitch runs the same buckets, forks and grapples as our skid-steer range. Fleet standardisation is genuinely possible.
03
Built for British sites
Hoses, seals and electrics specified for wet winters and long days. Proven Kubota, Yanmar or Cummins power on many models, with sensible service intervals.
04
Ashmoors UK support
Ashmoors remains your UK point of contact for warranty, servicing, parts and technical support throughout ownership.
Compatible attachments
One machine, endless jobs.
Compare in class
The RL06, next to its siblings.
Side-by-side headline specifications for the nearest machines in the wheel loaders range. Full comparison sheets and dimensioned drawings sent with any quote.
| Specification | 600 kg rated load RL06 | 1,200 kg rated load RL10 | 1,500 kg rated load RL15 | 2,800 kg rated load RL20 |
|---|---|---|---|---|
| Engine | Kubota D1105 (Euro V / EPA4) | Changchai ZN390 (Euro V) or Euro II option | Yuchai 490 (Euro III) / Yanmar 498 (EPA4) | Yuchai (Euro III) |
| Rated load capacity | 600 kg | 1,200 kg | 1,500 kg | 2,800 kg |
| Rated bucket capacity | 0.23 m³ | 0.60 m³ | 0.70 m³ | 1.28 m³ |
| Dumping height | 2,060 mm | 2,500 mm | 3,200 mm | 3,500–3,800 mm |
| Dumping reach | 650 mm | 700 mm | 900 mm | 1,100 mm |
| Max travel speed | 8 km/h | 30 km/h | 30 km/h | 40 km/h |
Also in
Curated collections featuring the RL06
FAQs
Questions we hear a lot.
Not seeing yours? Request a callback — discuss the job directly with our UK team.
What engine is fitted to the RL06?+
The Ashmoors RL06 Wheel Loader is fitted with a Kubota D1105 (Euro V / EPA4), as published in the manufacturer's specification. The full specification table on this page lists every confirmed figure for the machine.
What does the RL06 weigh, and can it be towed in the UK?+
The RL06 is quoted at 600 kg. Add the tare weight of your plant trailer, typically 700-800 kg for a braked 3.5-tonne trailer, to get the towed weight, then check that total against your trailer plate, your towing vehicle's limits and your licence entitlement before travelling. Machines above roughly 8 tonnes are delivered by low-loader instead.
What warranty does the RL06 come with?+
Every RL06 comes with a 12-month parts warranty, with warranty claims handled for you in the UK by Ashmoors. The engine also carries the engine manufacturer's own warranty, and extended cover can be quoted on request. Full terms are confirmed in writing with your order.
How quickly can the RL06 be delivered?+
Machines are held in stock in the UK. Mainland UK delivery is typically 3–5 working days from cleared payment, fully insured, and we confirm a delivery day with you in advance. Highlands, islands and Northern Ireland are arranged on request.
Are spare parts held in the UK?+
Contact Ashmoors with the RL06 serial number and required part. We will confirm compatibility, availability and delivery before you order.
Can I finance the RL06?+
Finance options may include hire purchase and finance lease through UK-regulated funders. Terms and monthly figures depend on the machine, deposit, term and applicant status.
Do I need a CPCS ticket to operate this machine?+
Operator ticketing requirements depend on the site, insurance and duty. For most domestic and light-commercial work the RL06 does not legally require CPCS, but many hire firms and main contractors will still require an appropriate ticket. Speak to your site's health & safety lead.
What attachments fit the RL06?+
General purpose bucket, 4-in-1 bucket, Pallet forks, Grapple bucket, High-tip bucket — plus most common auxiliary-hydraulic attachments sized for the class.
Where can I compare the RL06 against other wheel loaders?+
Every machine in the Wheel Loaders range is listed at /machinery/wheel-loaders. Call us and we'll walk you through the spec differences against the closest alternatives — we'd rather sell you the right machine than the biggest one.
Do you sell used wheel loaders?+
Our listed range is new machinery. Contact the Ashmoors team to ask about current availability.
Also in the range
Other wheel loaders
1,200 kg rated load
RL10
1.2-tonne yard workhorse.
Request a quote →
Built to order · UK delivery
- Rated load capacity
- 1,200 kg
- Rated bucket capacity
- 0.60 m³
- Engine
- Changchai ZN390 (Euro V) or Euro II option
1,500 kg rated load
RL15
1.5-tonne all-rounder.
Request a quote →
Built to order · UK delivery
- Rated load capacity
- 1,500 kg
- Rated bucket capacity
- 0.70 m³
- Engine
- Yuchai 490 (Euro III) / Yanmar 498 (EPA4)
2,800 kg rated load
RL20
2.8-tonne production loader.
Request a quote →
Built to order · UK delivery
- Rated load capacity
- 2,800 kg
- Rated bucket capacity
- 1.28 m³
- Engine
- Yuchai (Euro III)
Pre-delivery inspection
Every RL06 is PDI checked in Britain.
Your RL06 is not passed straight from the container to your yard. It goes through our 20-point pre-delivery inspection at our UK workshop, and the signed checklist, operator's manual and conformity documents are supplied with the machine. Service kits and filters are held in the UK, so routine servicing never leaves you waiting on a container.
- Hydraulic pressures checked against the manufacturer's figures
- All hydraulic hoses, rams and fittings checked for weeps and chafing
- Engine oil level and condition checked
- Hydraulic oil level and cleanliness checked
- Coolant level and antifreeze strength checked
- Fuel system bled and filters checked
- Air filter and pre-cleaner inspected
- Battery charged, terminals cleaned and protected
- Track tension set and running gear bolts torqued
- Slew ring and pivot bolts torqued to specification
- Every grease point charged
- Boom, dipper and bucket pins checked for play
- Quick hitch function and safety locking tested
- Auxiliary hydraulic circuit flow tested
- Bucket and attachment fit confirmed on the machine
- All lights, horn, alarms and switches tested
- Seat, belt, controls and safety guards checked
- Cab or canopy glazing, wipers and heater checked (where fitted)
- Test run through every function, plus a short working test
- Machine washed, touched in where needed, manual and documents packed
